ZYF-J2-L 101B Egg Grader
Product Code: 101B
Capacity: 4,000 eggs/hour
Function: Grading, LED candling
Overview
101B Egg Grader - Reliable Performance, Flexible Configuration
Engineered for superior performance, our stainless steel egg grader delivers precision grading and robust durability in one integrated system. Designed to maximize productivity while ensuring consistent quality, it's the ideal solution for modern egg processing operations.
Features
-
High-Precision Grading
Classifies eggs into 7 weight grades with ±1 gram accuracy and a capacity of 4,000 eggs/hour. Ensures consistent, market-ready packaging that maximizes product value and meets premium quality standards.
-

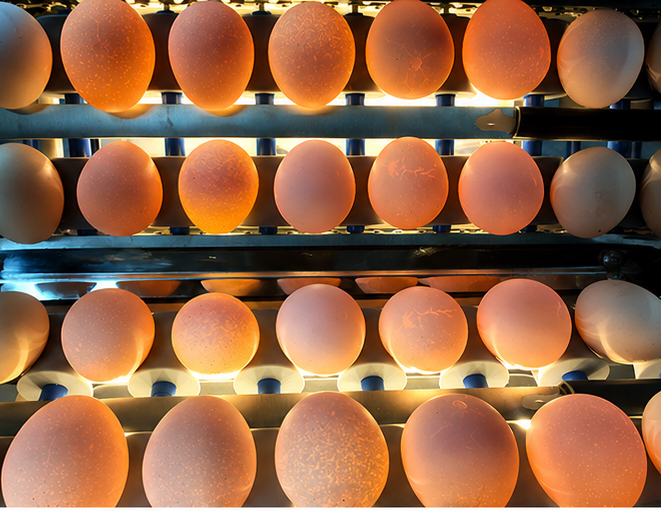

Advanced Quality Control (Candling)
Integrated candling booth equipped with LED lights, a mirror, and a reversible cover to easily inspect and remove eggs with cracks, dirt, or internal defects.
-
Optional Accessories
-
Vacuum Egg Lifter & Accumulator: Use the 602 vacuum lifter to pick up 30 eggs at a time; the accumulator automatically divides and feeds them onto the machine.
-

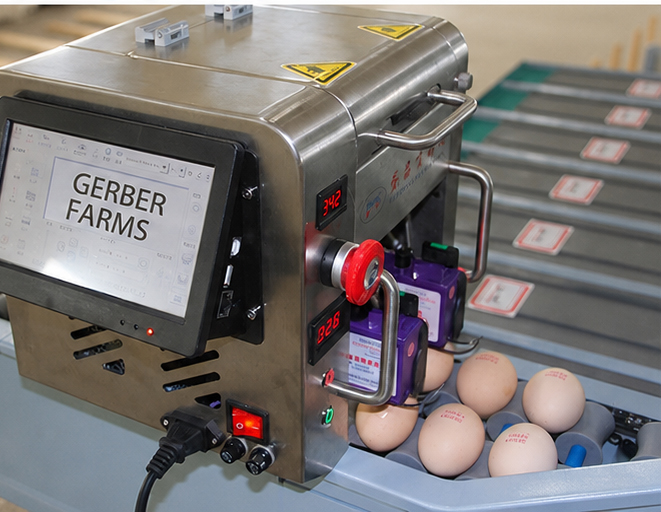

Egg Printer: Automatically prints traceability information (such as dates, brand logos, and lot numbers) directly onto the eggs.
-
Seamless Line Integration
Effortlessly connects with the ZENYER 200A egg washer, 604A accumulator, and optional 402H egg printer to form a complete ZENYER 300A egg washing & grading line with a capacity of 3,000 eggs/hour.
Specifications
| Specification |
Details |
| Commodity |
Egg grader |
| Product Code |
101B |
| Model |
ZYF-J2-L |
| Capacity |
4,000 eggs/hour |
| Material |
Stainless steel |
| Accuracy |
±1g |
| Grade |
7 grades |
| Power |
218W, 3.6A |
| Voltage |
110V / 220V, 50/60Hz, Single phase |
| Dimension (L×W×H) |
1.7 × 1.45 × 1.8 M |
| Net Weight |
160 KG |
| Gross Weight |
230 KG |
| Function |
Grading & LED candling |
The candling cover can face both inside or outside
The feeding roller on the LEFT hand side only (see above)
 |
 |

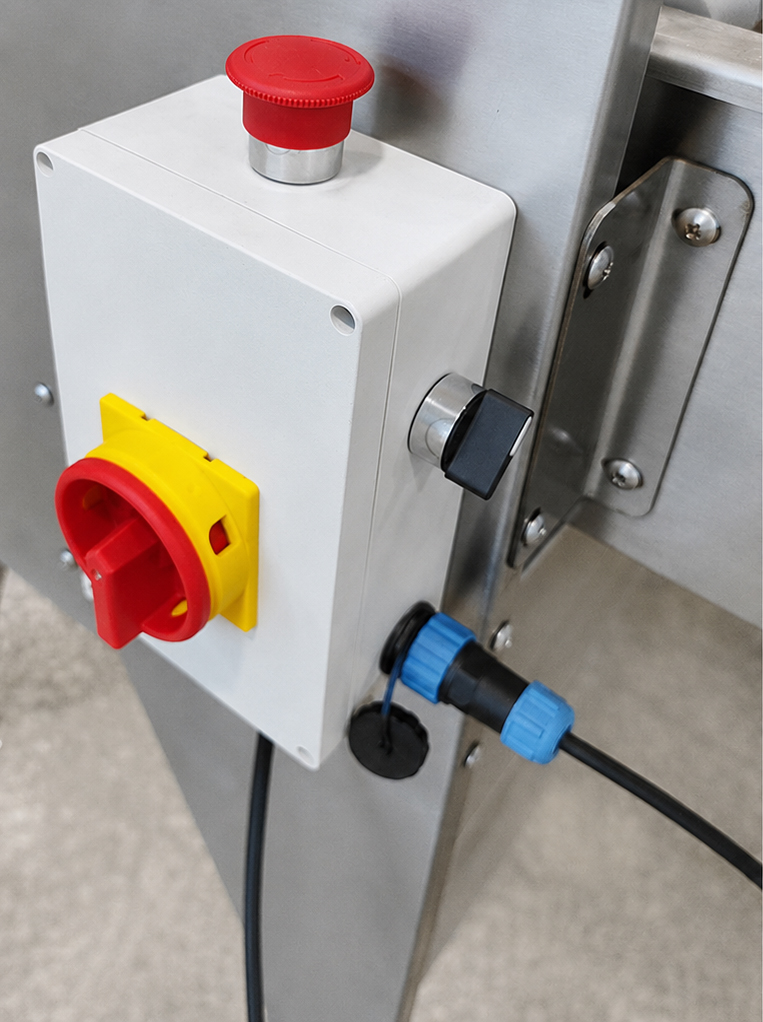

| Power switches |
The 2-row candler with a candling cover and mirror. |
 |
 |
| 402H egg printer matches on the 101B egg grader |
Egg weighting system |

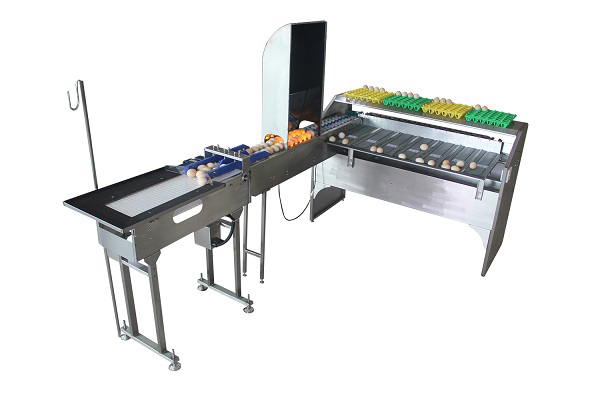

ZYF-JS2-L egg grader (product code: 101BS), consist of: Zenyer 604A accumulator and 101B egg grader
(Through the 604A accumulator, eggs are divided into 2 lines and transferred into the 2-row feeding roller of 101B egg grader automatically)
Packing and shipping
Factory profile:
|
|
Stainless Steel Material 5 Grade Egg Sorter Grading and Candling Machine Images
|
